110 hp Small Hydraulic Bulldozer

Working device: There are many devices to choose from, such as direct shovel, sanitation shovel, corner shovel and soil dredging device.

  • Overview
  • Related Products

1. This machine adopts a high-pressure common rail diesel engine jointly produced by Dongfang Hong and Ricardo of Britain, which meets the national two-phase emission requirements, with low noise, large torque, energy saving and environmental protection.

2. Four-wheel belts of well-known domestic brands, optimized walking mechanism and reinforced chassis, and customized profiles made of special materials have greatly improved the overall strength and impact resistance of the whole machine.

3. The hydraulic system adopts fluororubber ring, which has high sealing efficiency and high reliability. Hydraulic oil tank is separated from diesel oil tank, which is convenient for maintenance and repair;

4. All vehicles are equipped with standard LED headlights to improve night construction efficiency;

5. Install protective devices at the front ends of desert air filters and radiators to effectively improve heat dissipation performance, increase maintenance intervals, and better adapt to special working conditions such as coal yards, deserts and garbage dumps;

6. Adopt electronic monitoring electrical system to monitor the whole machine in real time to ensure its normal operation;

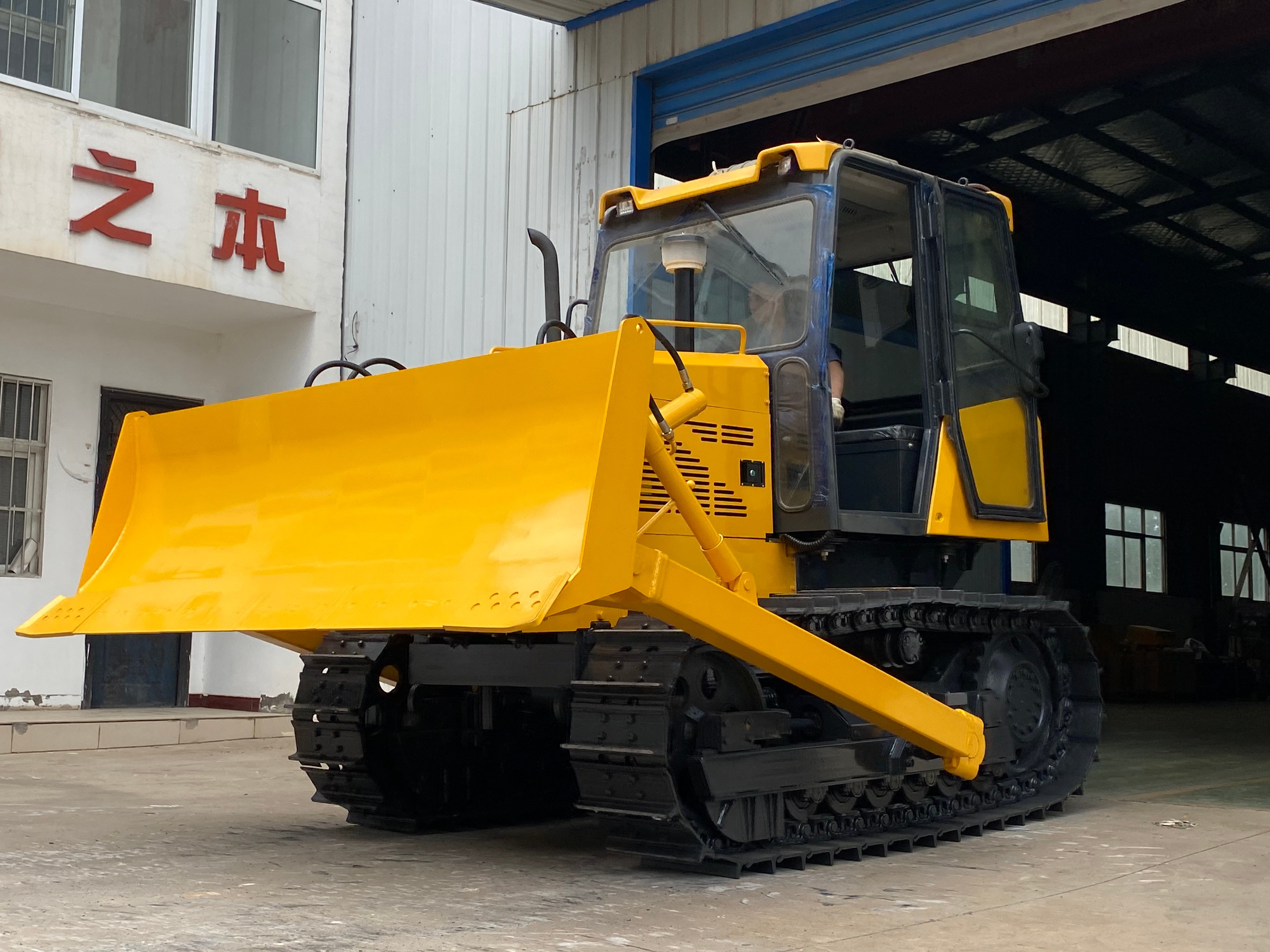

110 hp Small Hydraulic Bulldozer factory

110 hp Small Hydraulic Bulldozer factory

110 hp Small Hydraulic Bulldozer manufacture

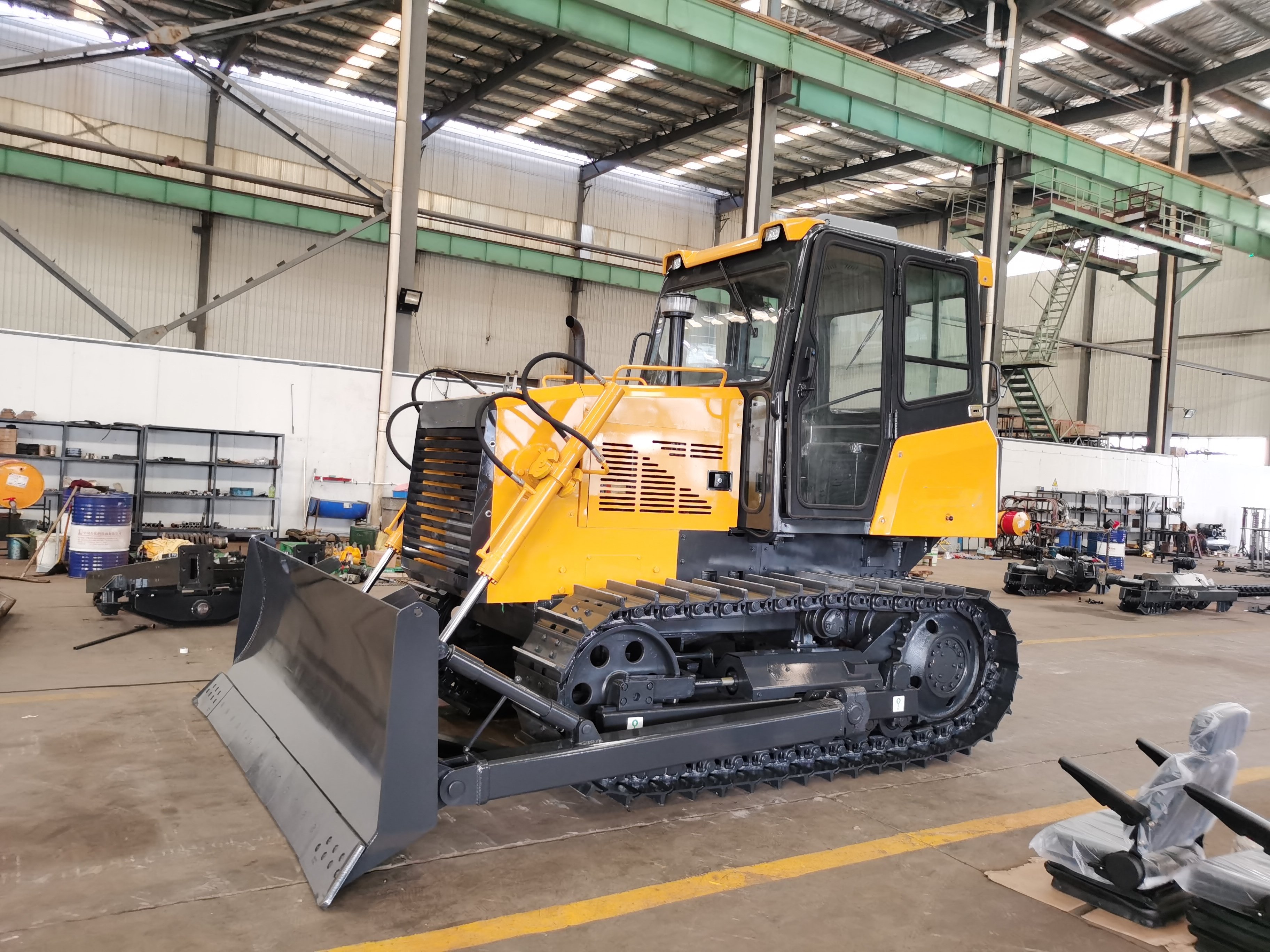

110 hp Small Hydraulic Bulldozer details

110 hp Small Hydraulic Bulldozer details

基本参数

Basic parameters

性能参数

Performance specifications

整机重量(kg )

 Total weight

10400

前进 1-4 档(km/h )

Forward 1-4 gear

2.6~ 10.4

发动机功率/转速(kw/ r/min)

Engine power /speed

81/2300

后退 1-2 档(km/h )

Reverse 1-2 gear

3.7 ~6.7

发动机燃油消耗率(g/km.h )

Fuel consumption of the

engine

≤220

接地比压 (kPa )

Land pressure

54.4

发动机最大扭距(N.m )

Engine max torque

414

整机尺寸

Dimensions

作业范围及参数

Operating scope  and   parameters

总长(mm)

Overall length

4190

铲刀最大提升高度( mm )

Blade max lifting height

830

总宽度(mm)

Overall width

2935

铲刀入土深度( mm )

Blade max digging depth

350

总高度(mm)

Transport height

3020

牵引装置/松土器(选装)

Towing

equipment/Ripper(optional)

固定式/三齿Fixed/three-toothed

推土铲(宽)(mm )

Bulldozer shovelW

2935

推土铲(高)(mm )

Bulldozer shovel  H

960

履带宽度(mm )

Caterpillar track board width

450
