PC1250 excavator, the working hours are short, the machine is in good working condition, the engine power is strong enough,there is no maintenance record, the main core components, including the engine, hydraulic pump, distribution valve and rotary motor, are not damaged. This small excavator with fast speed, simple operation and superior performance, can be used for road building,bridge building, demolition, crushing and other work, can help you in any working environment to improve work efficiency.
|
Brand Name
|

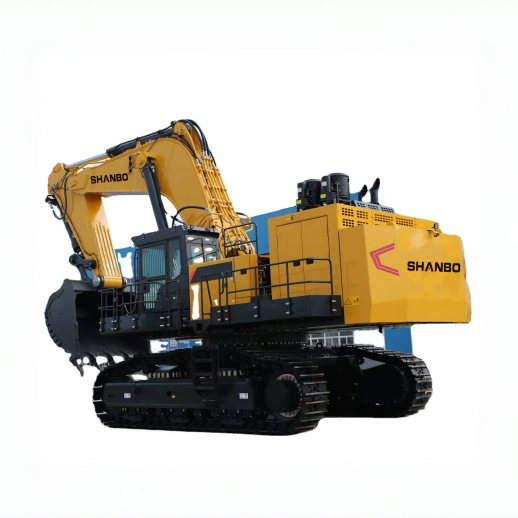

SHANBO SH1250 Crawler Excavator
|
|
Condition
|
New
|
|
Moving Type
|
Crawler Excavator
|
|
Operating Weight
|
120Ton
|
|
Bucket capacity
|
7.5~10M³
|
|
Ground clearance of counterweight
|
1900mm
|
|
Tail radius of gyration
|
5100mm
|
|
Min. ground clearance
|
1070mm
|
|
Track gauge
|
3900mm
|
|
Standard track shoe width
|
700mm
|
|
swing arm
|
7550mm
|
|
Max. digging height
|
12480mm
|
|
Max. dumping height
|
8065mm
|
|
Max. digging depth
|
8165mm
|
|
Max. vertical wall digging depth
|
4600mm
|
|
Max. digging reach
|
13875mm
|
|
Min. swing radius
|
6765mm
|
|
Track length
|
6500mm
|
|
Track width
|
4600mm
|
|
Width of rotary table (excluding platform/including platform)
|
3490/5385mm
|
|
Distance from center of rotation to rear end
|
4960mm
|
|
Bucket bar
|
3400mm
|
|
Engine model
|
WeiChai 8M33
|
|
Hydraulic system
|
Linde
|
|
Power
|
680/1800kw/rpm
|
|
Travel speed
|
2.4/3.5km/h
|
|
Swing speed
|
5.5r/min
|
|
Grade ability
|
70%
|
|
Traction
|
745KN
|
Product Features
This heavy-duty hydraulic mining crawler excavator is equipped with a reliable engine imported from the United States, which provides strong power support and can continue to work stably under high loads and harsh working conditions, ensuring that the excavator can still perform well in high-intensity operations such as mining.
The equipped high-efficiency hydraulic system is a highlight of this equipment. Through optimized design, the hydraulic system can effectively improve operating efficiency and make operations more precise and flexible. The stability and efficiency of the hydraulic system also significantly reduce energy consumption and maintenance costs.
This mining crawler excavator is also equipped with a booster device, which greatly enhances its adaptability in complex terrain. The pressure boost device enables the hydraulic system to provide higher operating pressure, thereby improving the machine's efficiency and digging capabilities in heavy-load, high-resistance operations.
In order to cope with high-load operations in extreme working conditions such as mining areas, this excavator adopts a reinforced X-shaped box structure, which greatly improves the compressive strength and stability of the entire machine and ensures the long-term stable operation of the equipment in harsh environments.
