Model
|

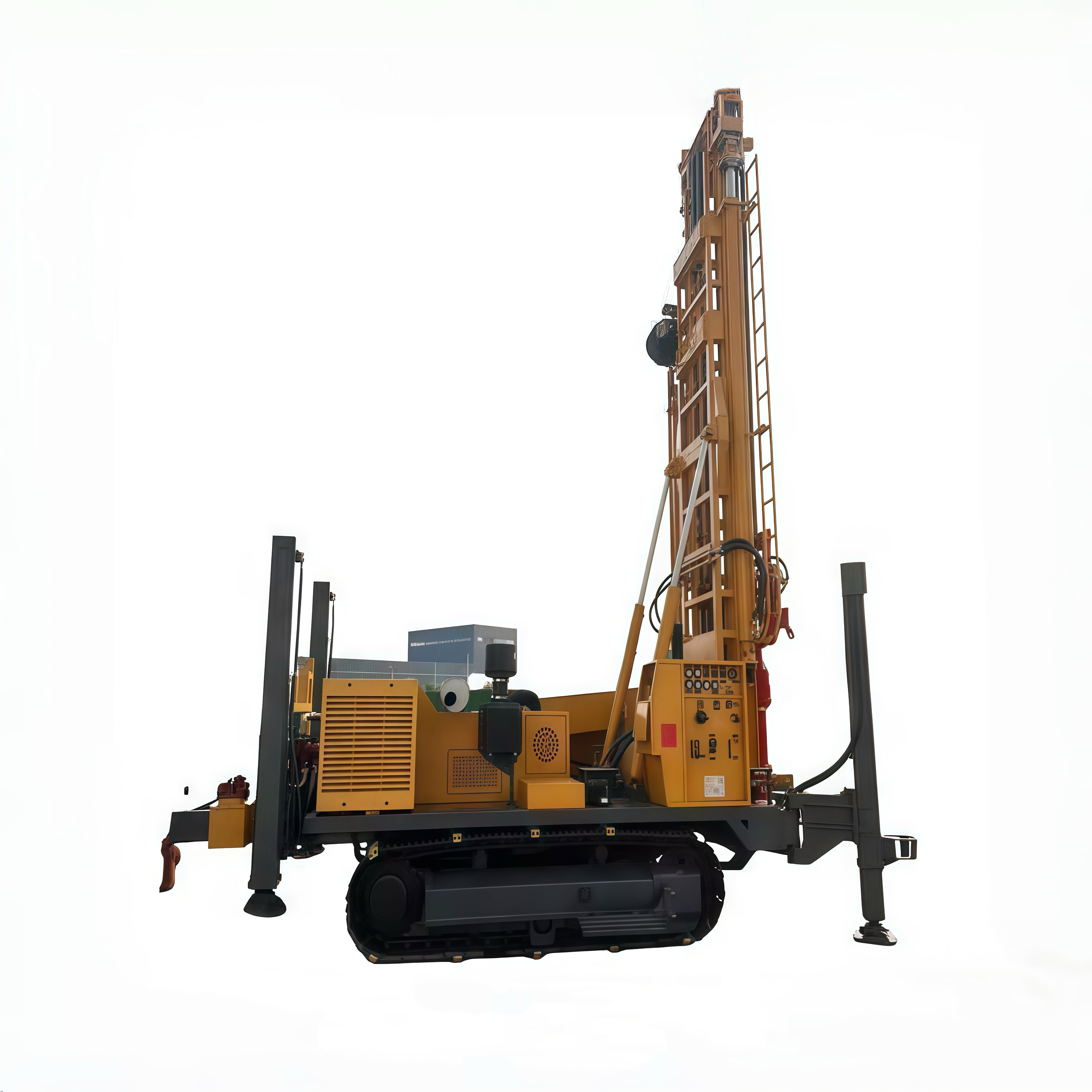

SL1200S Well Drilling Rig
|
|
Max drilling depth
|
1200m
|
|
Drilling diameter
|
105-900mm
|
|
Air pressure
|
1.65-8mpa
|
|
Air consumption
|
16-120m³/min
|
|
Drill pipe length
|
7m
|
|
Drill pipe diameter
|
114/127mm
|
|
Axial pressure
|
10T
|
|
Lifting force
|
60T
|
|
Fast lifting speed
|
29m/min
|
|
Fast feeding speed
|
51m/min
|
|
Max rotary torque
|
24000/12000Nm
|
|
Max rotary speed
|
85/170 r/min
|
|
Big auxiliary winch lifting force
|
5
|
|
Small auxiliary winch lifting force
|
2.5T
|
|
Jacks stroke
|
1.7m
|
|
Drilling efficiency
|
10-35m/h
|
|
Moving speed
|
6km/h
|
|
Uphill angle
|
21°
|
|
Weight of the rig
|
23T
|
|
Dimension
|
7*2.25*3m
|
|
Engine
|
Weichai 220kw
|
|
Working condition
|
Unconsolidated formation and stone head
|
|
Drilling method
|
Top drive hydraulic rotary and pushing hammer or mud drilling
|
|
Matched DTH hammer
|
Medium and high air pressure series
|
|
Optional accessories
|
Mud pump,Centrifugal pump,Generator,foam pump
|
Product Feature
This SL1200S well drill rig machine has a high drilling speed and can improve work efficiency. It can complete deeper drilling tasks in a short time, which makes it particularly suitable for water well projects that require rapid drilling and ensure a shortened construction period.
It has very high positioning accuracy during the drilling process, which is due to the use of a sophisticated control system and equipped with highly sensitive positioning equipment. Whether it is the location, depth, or inclination angle of the water well, it can be accurately controlled to ensure that every step of the construction reaches the expected goal.
Its advanced engine provides powerful power. Whether it is sand, clay, or hard rock, the machine can provide stable and efficient drilling. In addition, the drilling rig uses high-strength materials and wear-resistant parts, which ensures high performance while having extremely strong durability. Even under long-term high-load work, it can still maintain stable operation, reducing failure rate and maintenance frequency.
