Model
|

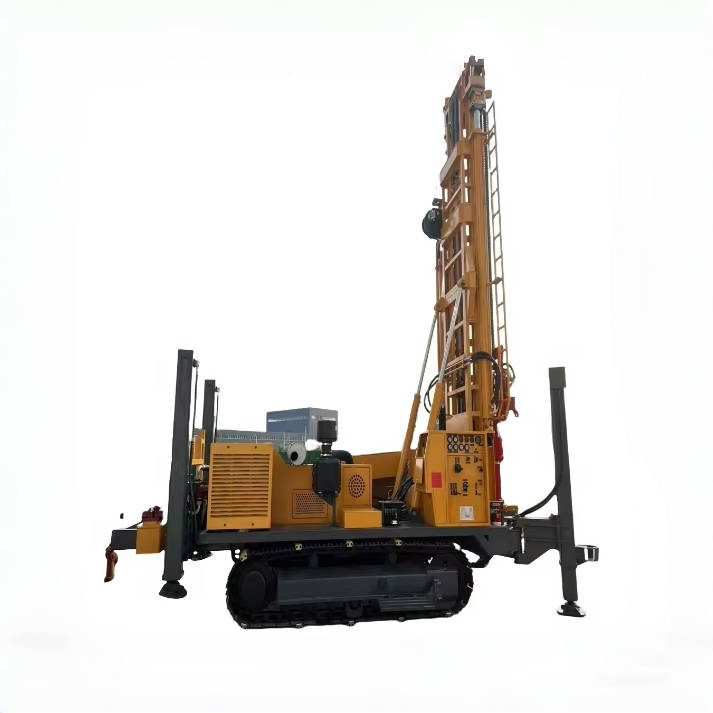

SL2000S Well Drilling Rig
|
|
Max drilling depth
|
2000m
|
|
Drilling diameter
|
105-1000mm
|
|
Air pressure
|
1.65-8mpa
|
|
Air consumption
|
16-120m³/min
|
|
Drill pipe length
|
15.4m
|
|
Drill pipe diameter
|
≥127mm
|
|
Axial pressure
|
19T
|
|
Lifting force
|
100T
|
|
Fast lifting speed
|
26m/min
|
|
Fast feeding speed
|
43m/min
|
|
Max rotary torque
|
36000Nm
|
|
Max rotary speed
|
150 r/min
|
|
Big auxiliary winch lifting force
|
5T
|
|
Small auxiliary winch lifting force
|
2.5T
|
|
Jacks stroke
|
1.2m
|
|
Drilling efficiency
|
10-35m/h
|
|
Moving speed
|
5.4km/h
|
|
Uphill angle
|
21°
|
|
Weight of the rig
|
36T
|
|
Dimension
|
12*2.6*3.6m
|
|
Engine
|
Cummins 410kw
|
|
Working condition
|
Unconsolidated formation and stone head
|
|
Drilling method
|
Top drive hydraulic rotary and pushing hammer or mud drilling
|
|
Matched DTH hammer
|
Medium and high air pressure series
|
|
Optional accessories
|
Mud pump,Centrifugal pump,Generator,foam pump
|
Product Feature
This water well drilling rig machine uses an advanced power system to provide strong drilling power and is suitable for a variety of geological environments (such as soft soil and hard rock). The maximum drilling depth can reach 2,000 meters, and it can easily handle both shallow water wells and deep groundwater mining.
In addition, the drilling rig is made of high-strength steel, which is wear-resistant, corrosion-resistant and has a long service life. And the equipment design is simple, easy to maintain and repair, reducing the failure rate and maintenance cost of the equipment. This drilling rig machine is suitable for water wells, agricultural irrigation, construction, geological exploration, and other fields.
