Model
|

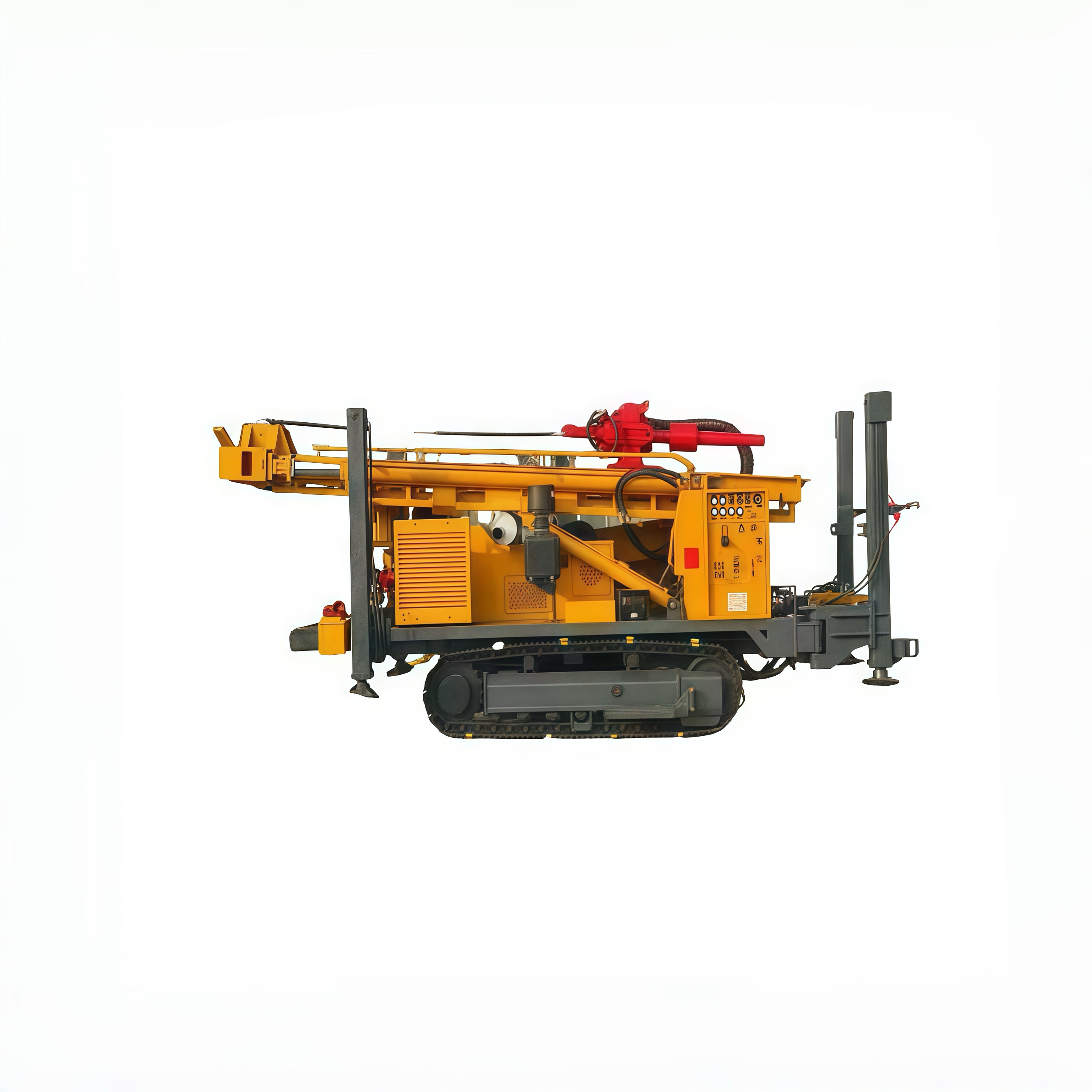

SL330S Well Drilling Rig
|
|
Max drilling depth
|
330m
|
|
Drilling diameter
|
105-305mm
|
|
Air pressure
|
1.2-3.5mpa
|
|
Air consumption
|
16/55m³/min
|
|
Drill pipe length
|
6m
|
|
Drill pipe diameter
|
89mm
|
|
Axial pressure
|
3T
|
|
Lifting force
|
18T
|
|
Fast lifting speed
|
30m/min
|
|
Fast feeding speed
|
60m/min
|
|
Max rotary torque
|
8000/4000Nm
|
|
Max rotary speed
|
60/120r/min
|
|
Big auxiliary winch lifting force
|
-
|
|
Small auxiliary winch lifting force
|
1.5T
|
|
Jacks stroke
|
1.45m
|
|
Drilling efficiency
|
10-35m/h
|
|
Moving speed
|
2.5km/h
|
|
Uphill angle
|
21°
|
|
Weight of the rig
|
8.2T
|
|
Dimension
|
6.32*1.7*2.39m
|
|
Engine
|
Yuchai 91kw
|
|
Working condition
|
Unconsolidated formation and stone head
|
|
Drilling method
|
Top drive hydraulic rotary and pushing hammer or mud drilling
|
|
Matched DTH hammer
|
Medium and high air pressure series
|
|
Optional accessories
|
Mud pump,Centrifugal pump,Generator,foam pump
|
Product Feature
This water well drilling rig machine is equipped with a powerful power system and sophisticated drilling technology, with an efficient drilling speed, and can quickly penetrate different geological layers. Its drilling speed is faster than traditional equipment, which can significantly improve work efficiency.
It is made of high-strength alloy steel and wear-resistant materials, which can withstand long-term high-load operation. The key components of the drilling rig are precision-processed to ensure long-term stable operation and reduce maintenance downtime caused by equipment failure.
This drilling machine is not only suitable for traditional water well drilling, but also widely used in geological exploration, environmental monitoring, mineral resource mining, and other fields. It can efficiently cope with drilling work in different geological layers.
As a direct manufacturer, our water well drilling rig machine is directly supplied to customers, eliminating the intermediary fees of dealers and ensuring that you purchase the most competitive high-quality machines at factory prices.
