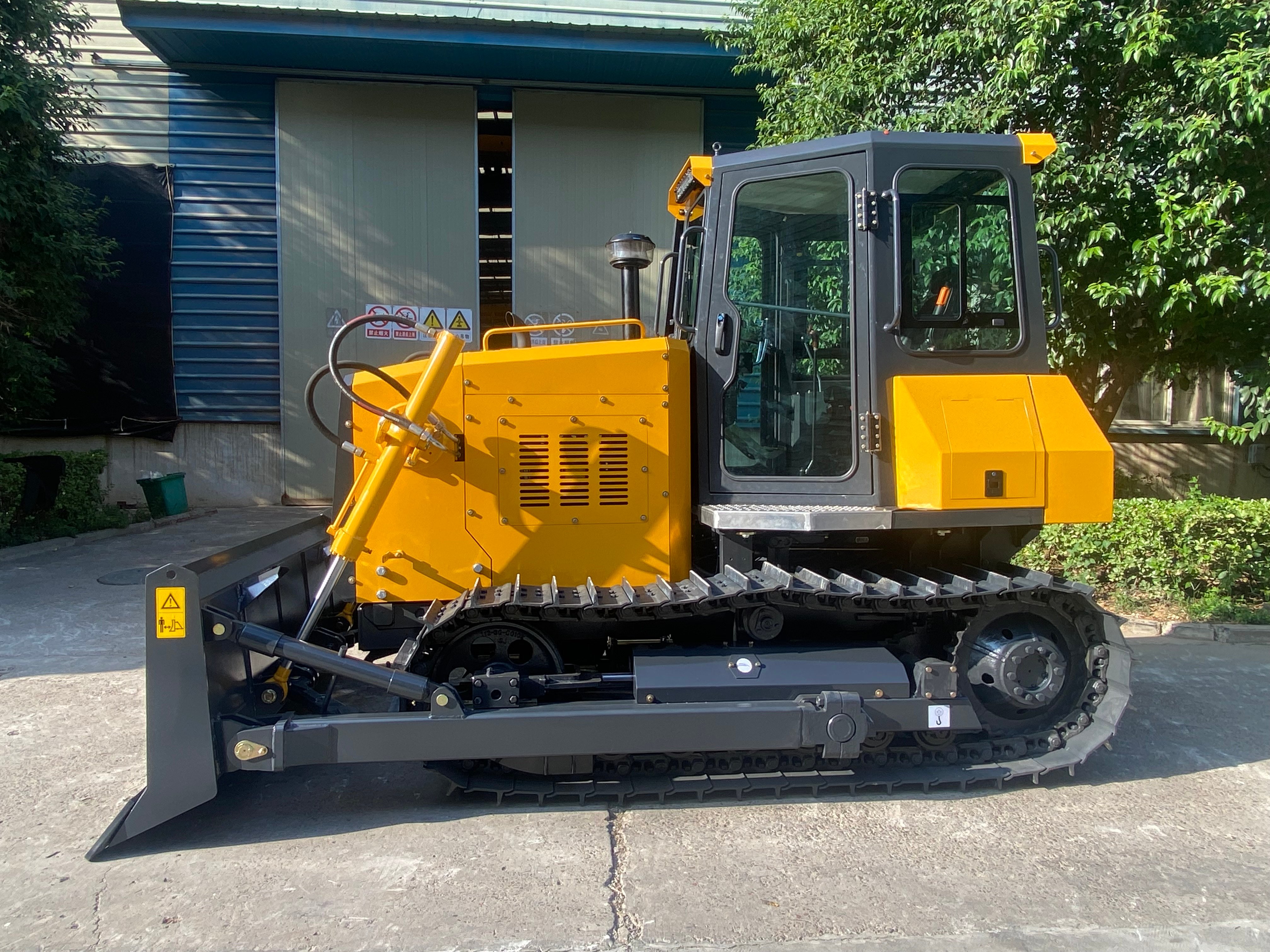

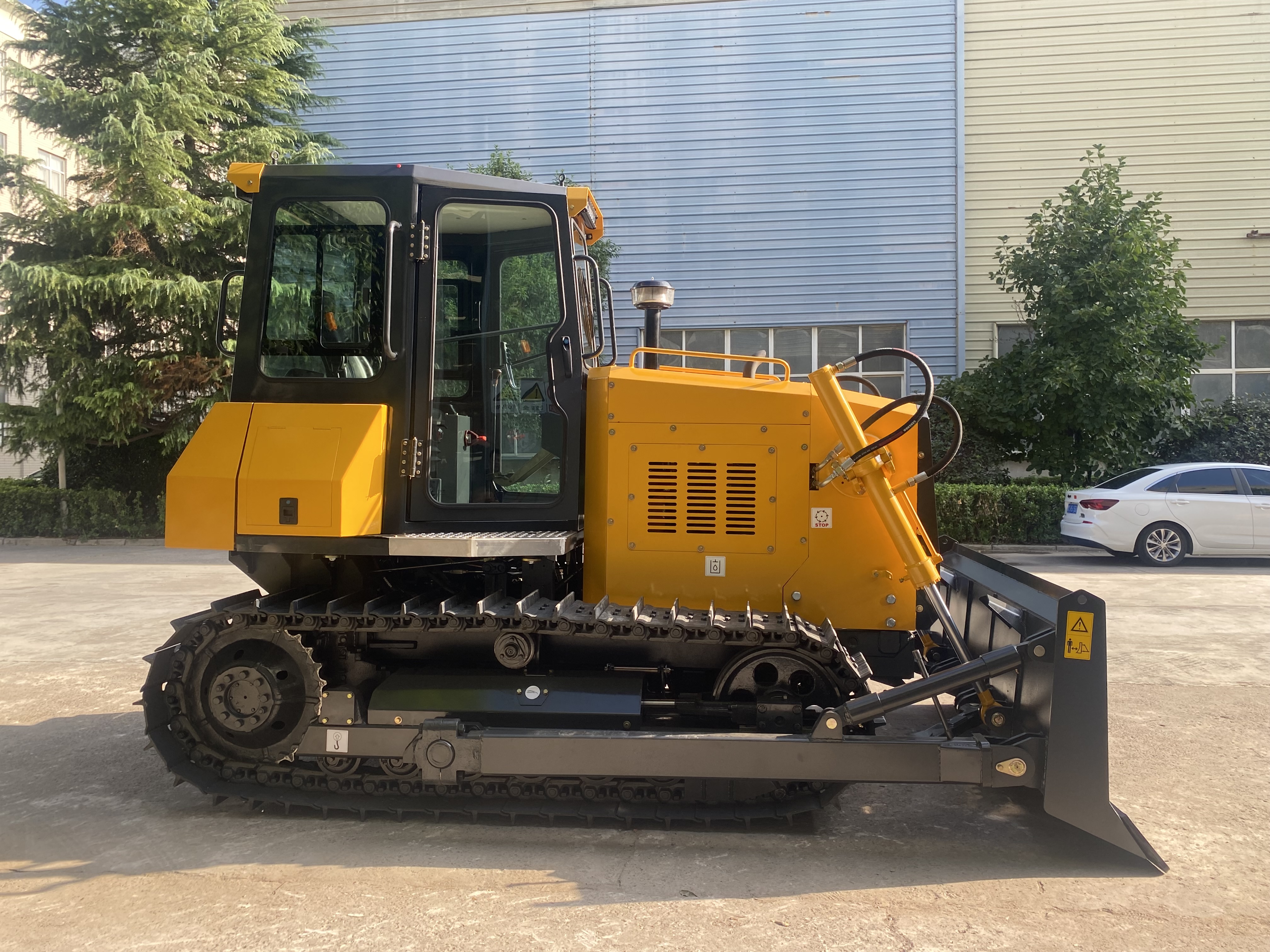

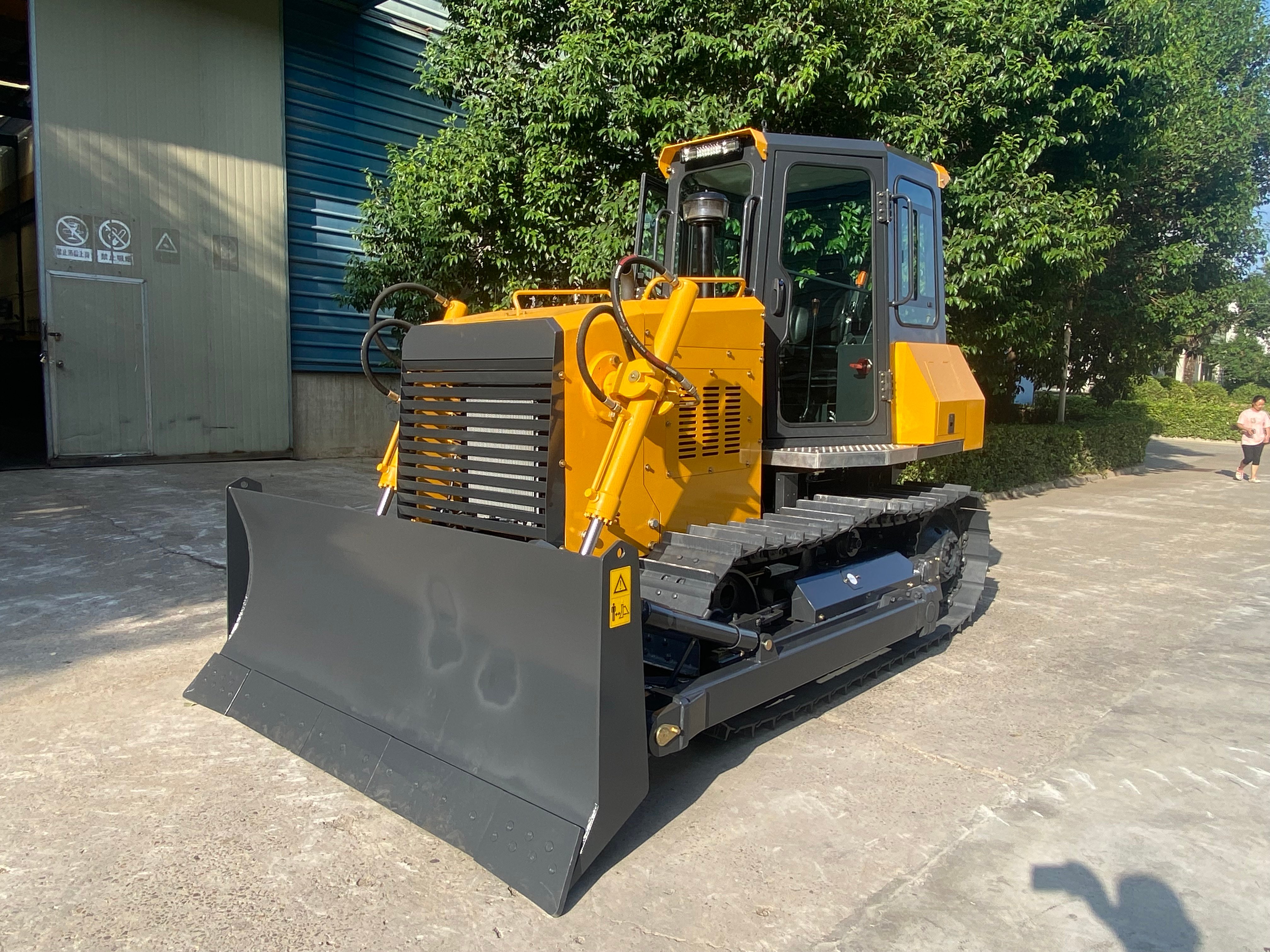

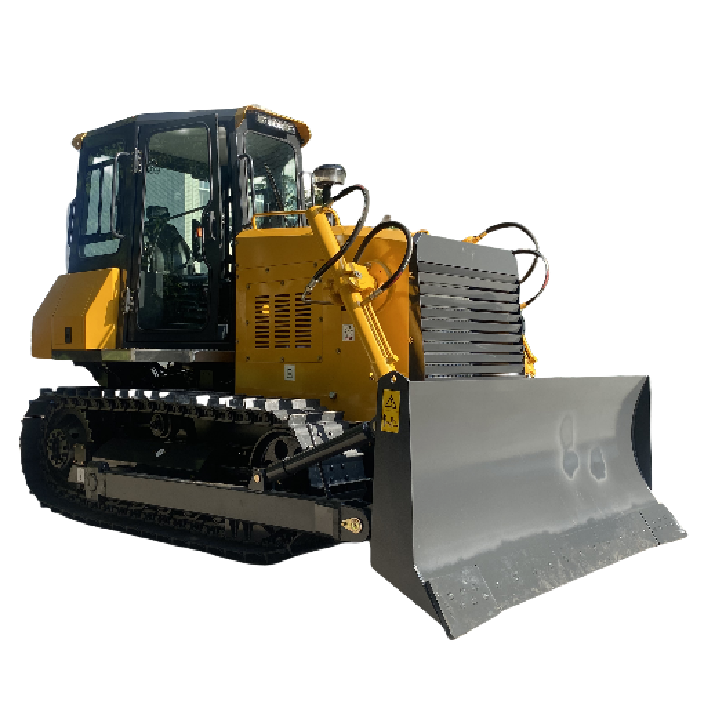

95 hp Hydraulic Compact Bulldozer
Shanbo SD08 bulldozer is an ideal machine for engineering construction. It adopts semi-rigid suspension, vehicle walking structure, advanced control system, full hydraulic power steering, and is flexible and labor-saving. This machine is suitable for narrow site construction, with flexible operation and high efficiency. Standard heating and ventilation equipment, air conditioning optional. And each maintenance center has humanized design, which improves the convenience of maintenance.
- Overview
- Related Products
|
基本参数 Basic parameters |
性能参数 Performance specifications |
||
|
整机重量(kg ) Total weight |
7500 |
前进 1-4 档（km/h ） Forward 1-4 gear |
2.4～10.4 |
|
发动机型号 Engine model |
LR4A3Z-22 |
后退 1-2 档（km/h ） Reverse 1-2 gear |
4.9～8.9 |
|
发动机功率/转速(kw/ r/min) Engine power /speed |
70/2200 |
接地比压 (kPa ) Land pressure |
42 |
|
发动机燃油消耗率(g/km.h ) Fuel consumption of the engine |
≤242 |
最大牵引力（kN） Max towing force |
82 |
|
发动机最大扭距(N.m ) Engine max torque |
414 |
||
|
整机尺寸 Dimensions |
作业范围及参数 Operating scope and parameters |
||
|
总长(mm) Overall length |
4020 |
铲刀最大提升高度( mm ) Blade max lifting height |
736.5 |
|
总宽度(mm) Overall width |
2450 |
铲刀入土深度( mm ) Blade max digging depth |
350 |
|
总高度(mm) Transport height |
2800 |
牵引装置/松土器(选装) Towing equipment/Ripper(optional) |
固定式/三齿Fixed/three-toothed |
|
推土铲(宽)(mm ) Bulldozer shovelW |
2450 |
发动机最大扭距（N.m） Engine max torque |
345 |
|
推土铲(高)(mm ) Bulldozer shovel H |
950 |
切土角（可调） Cutting angle(adjustable) |
55° |
|
履带宽度(mm ) Caterpillar track board width |
400 |
||
